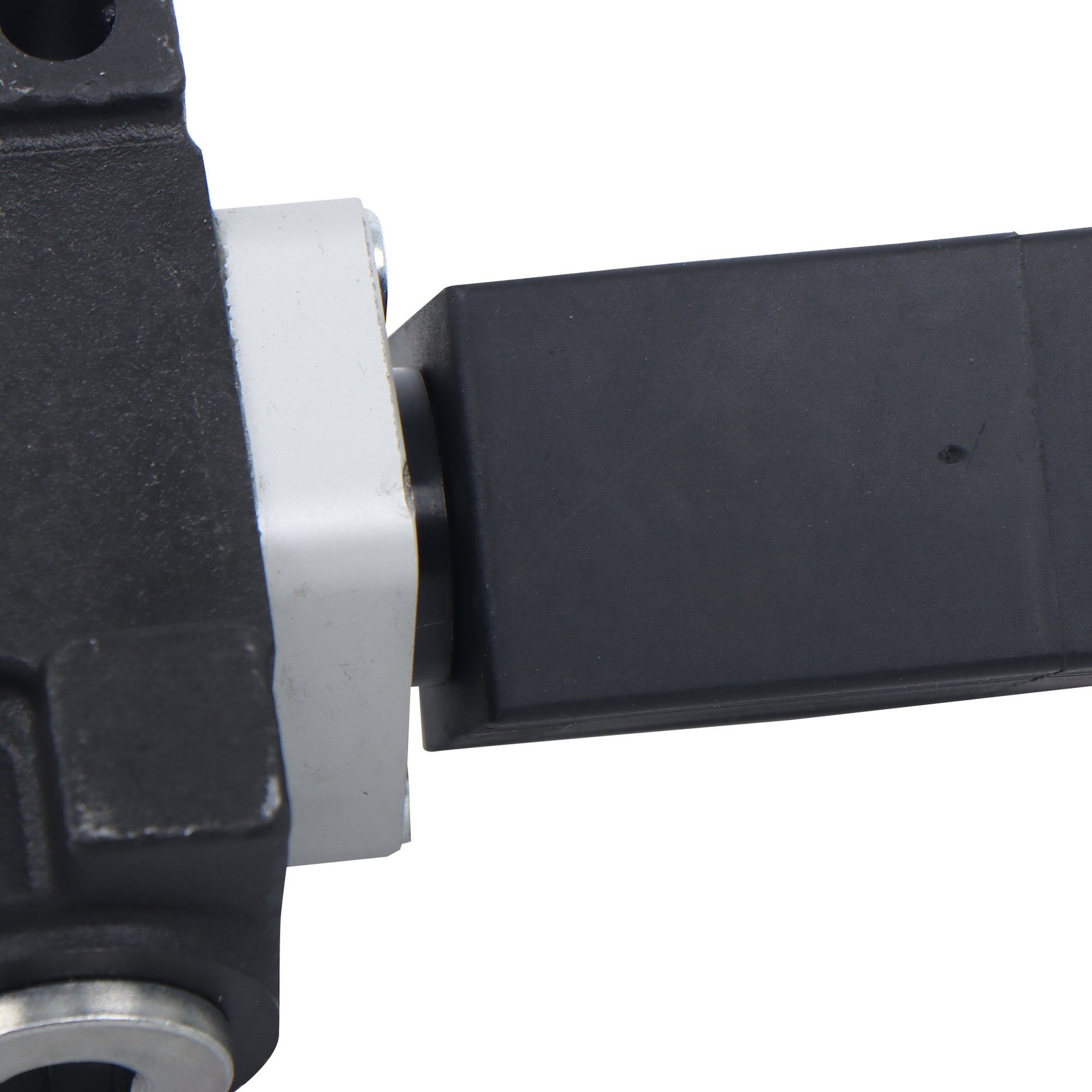

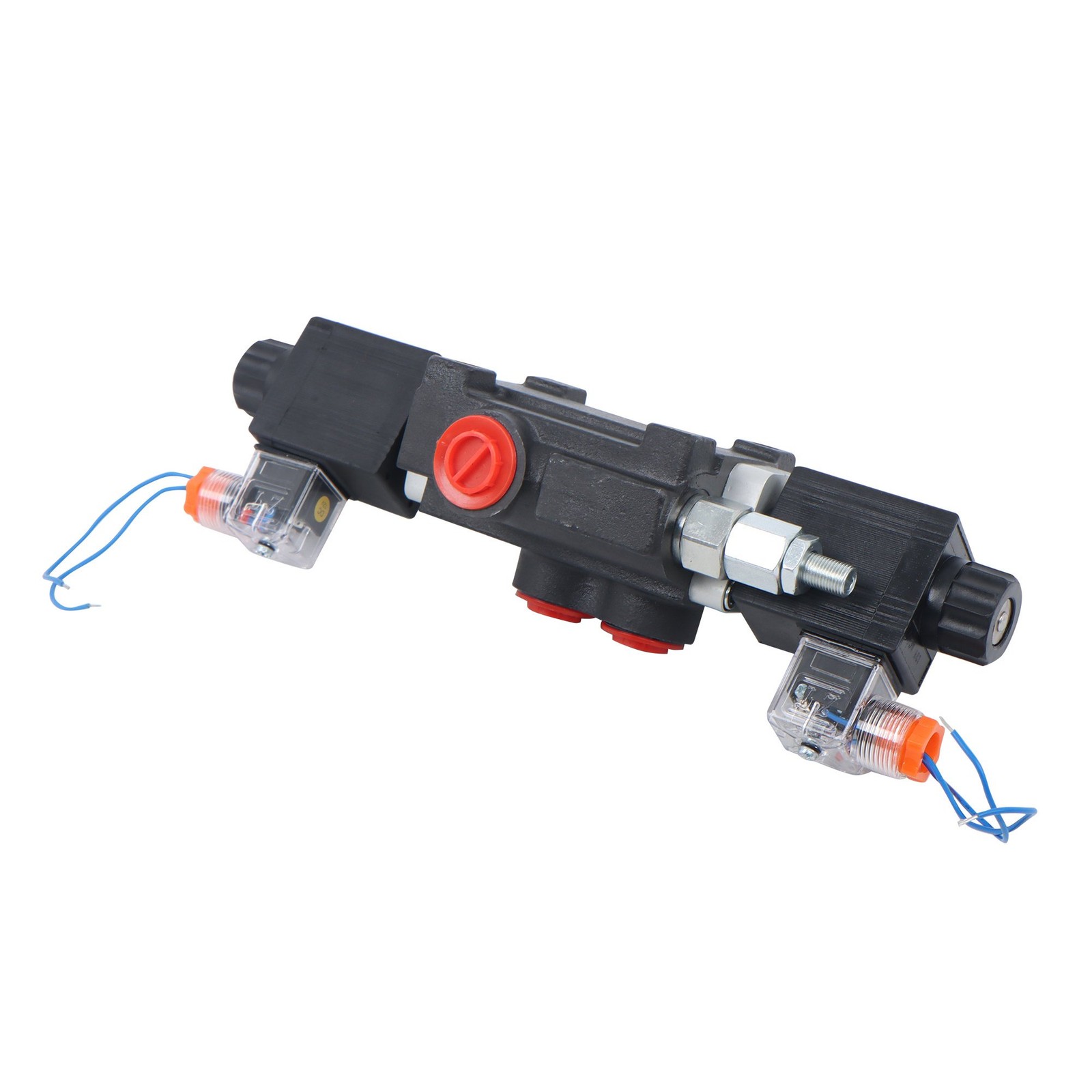

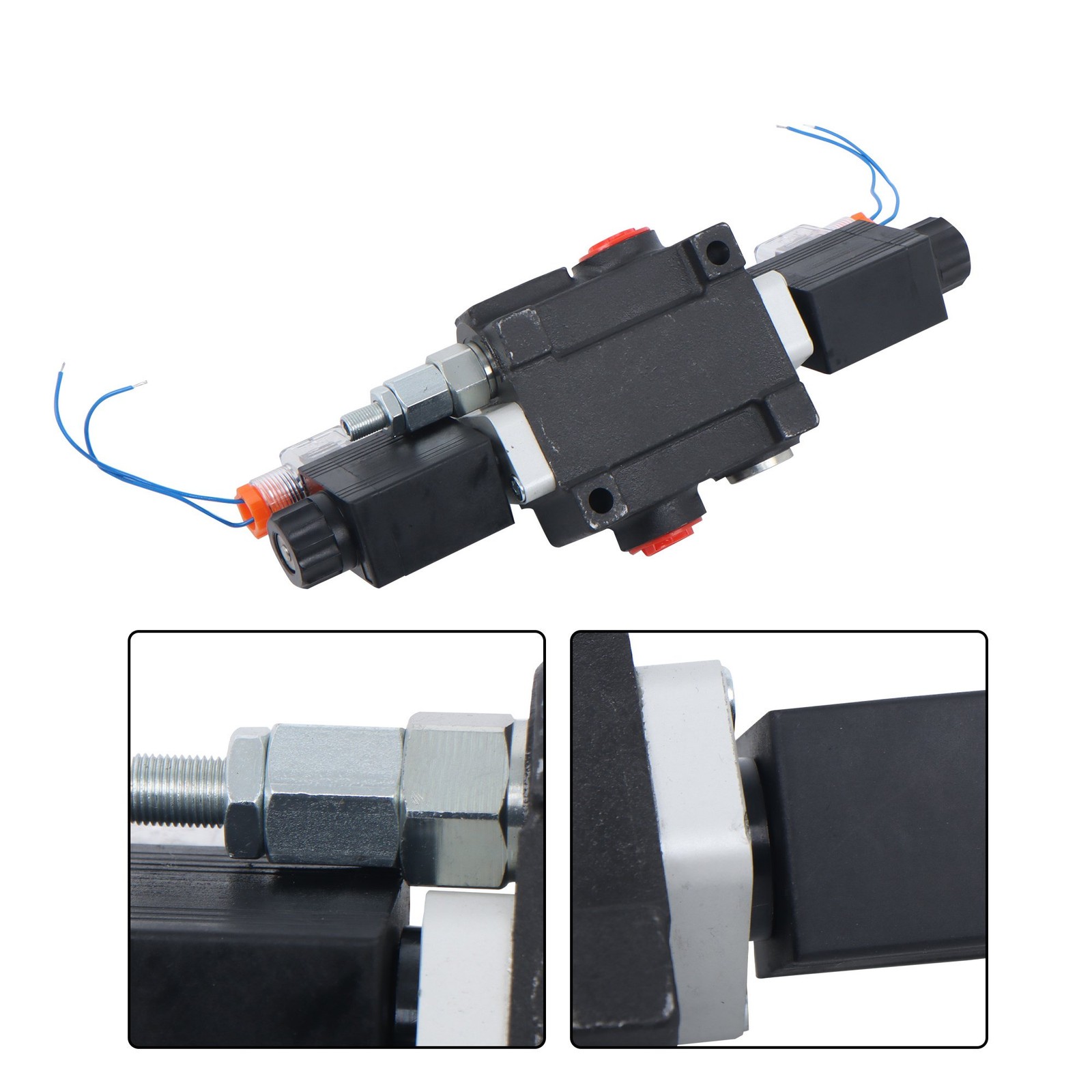

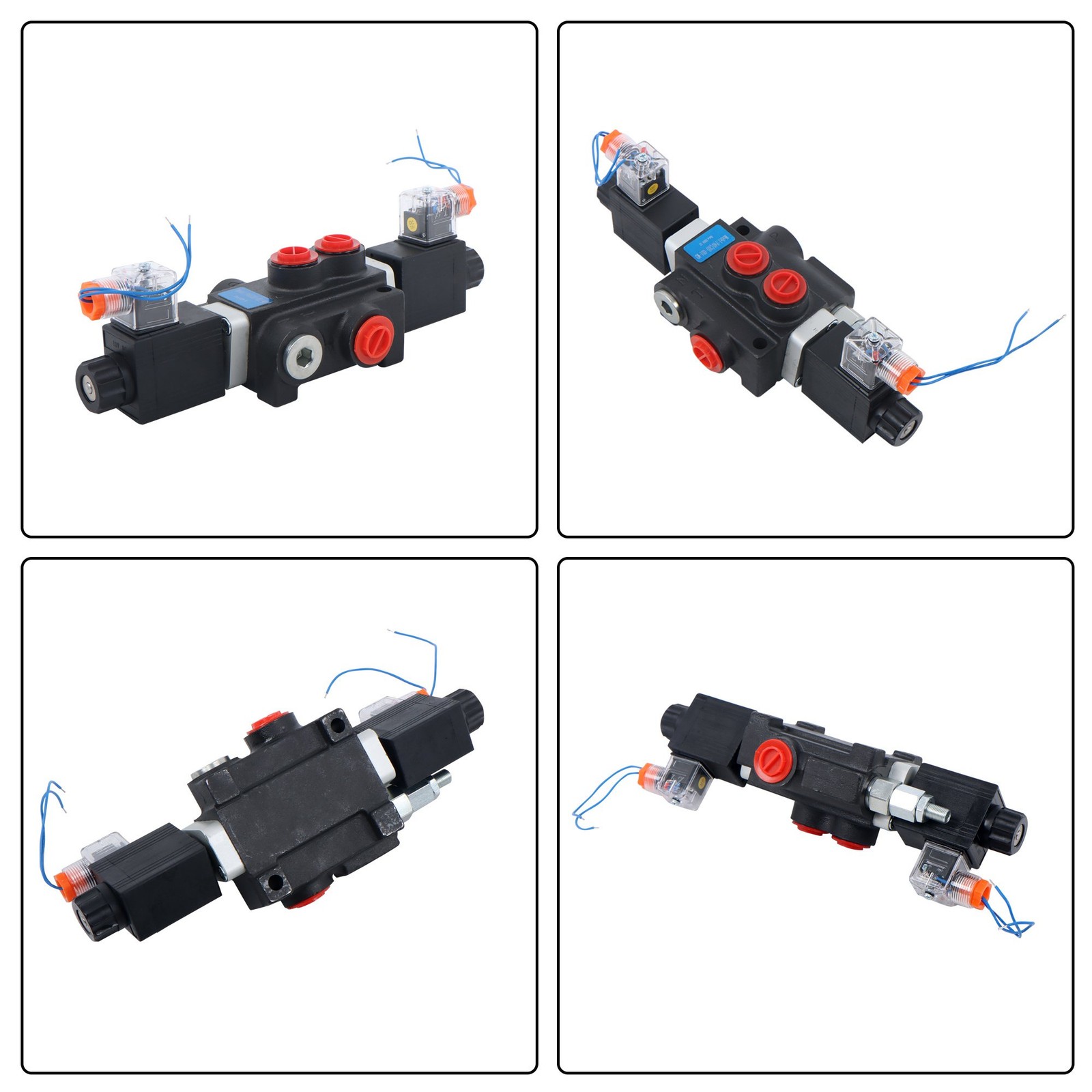

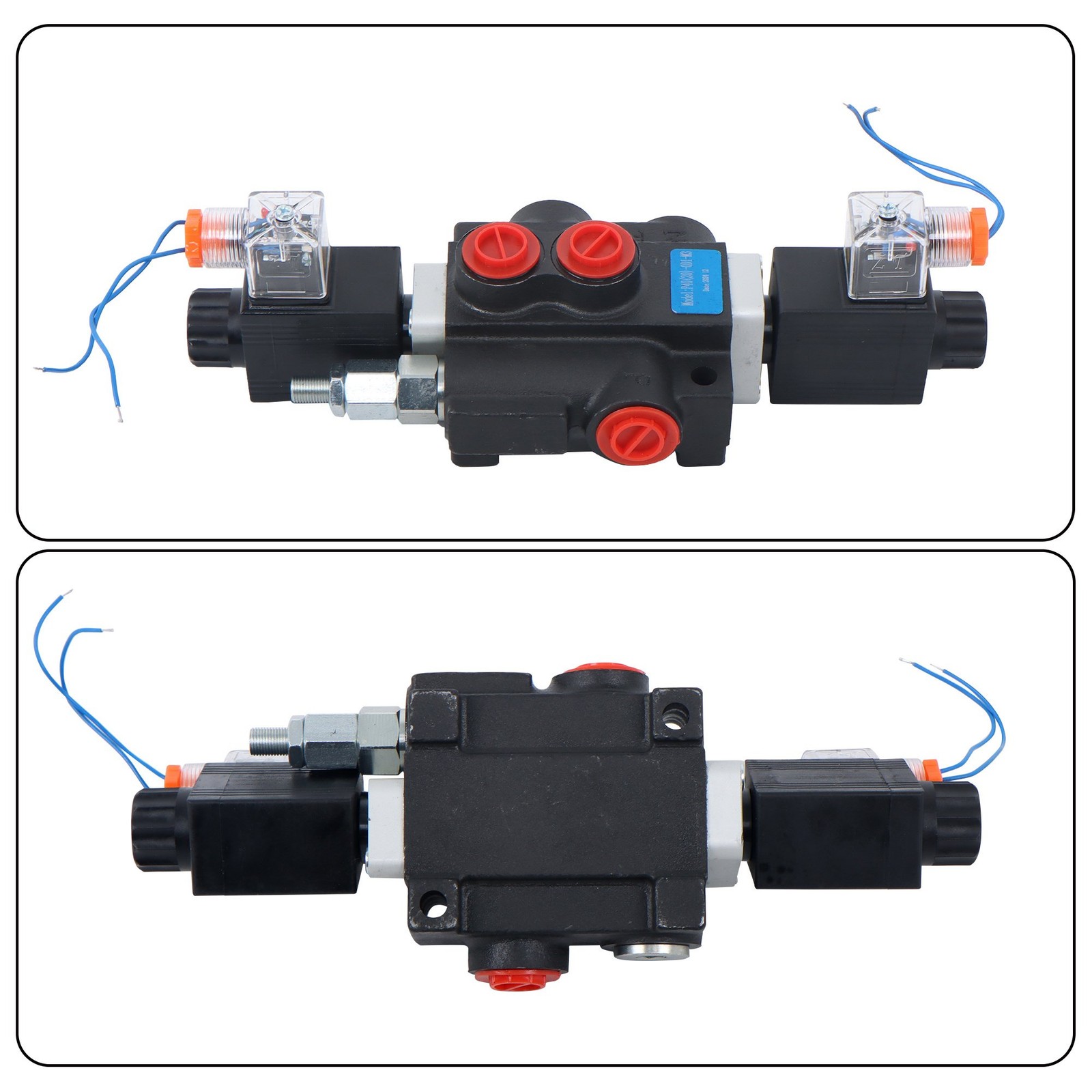

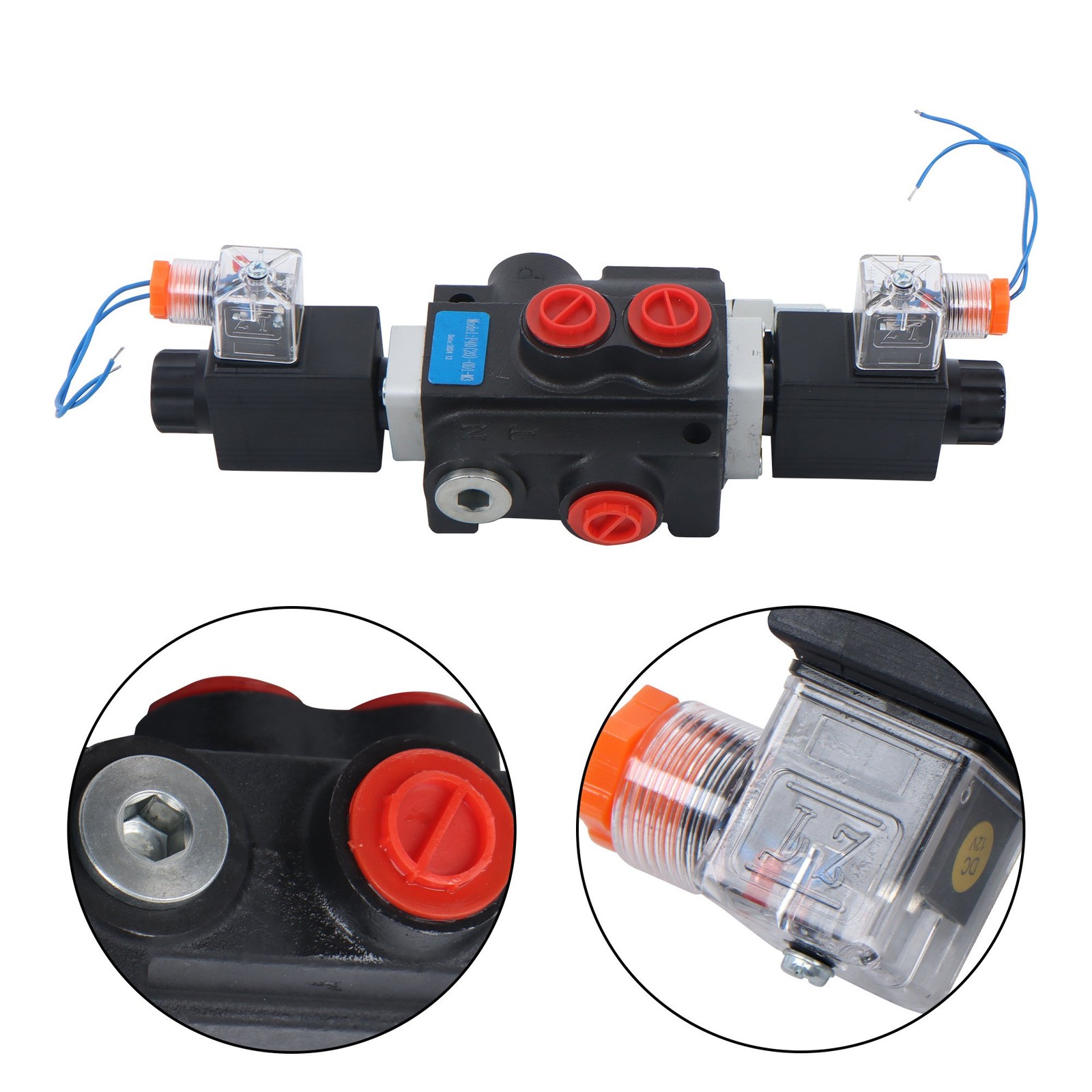

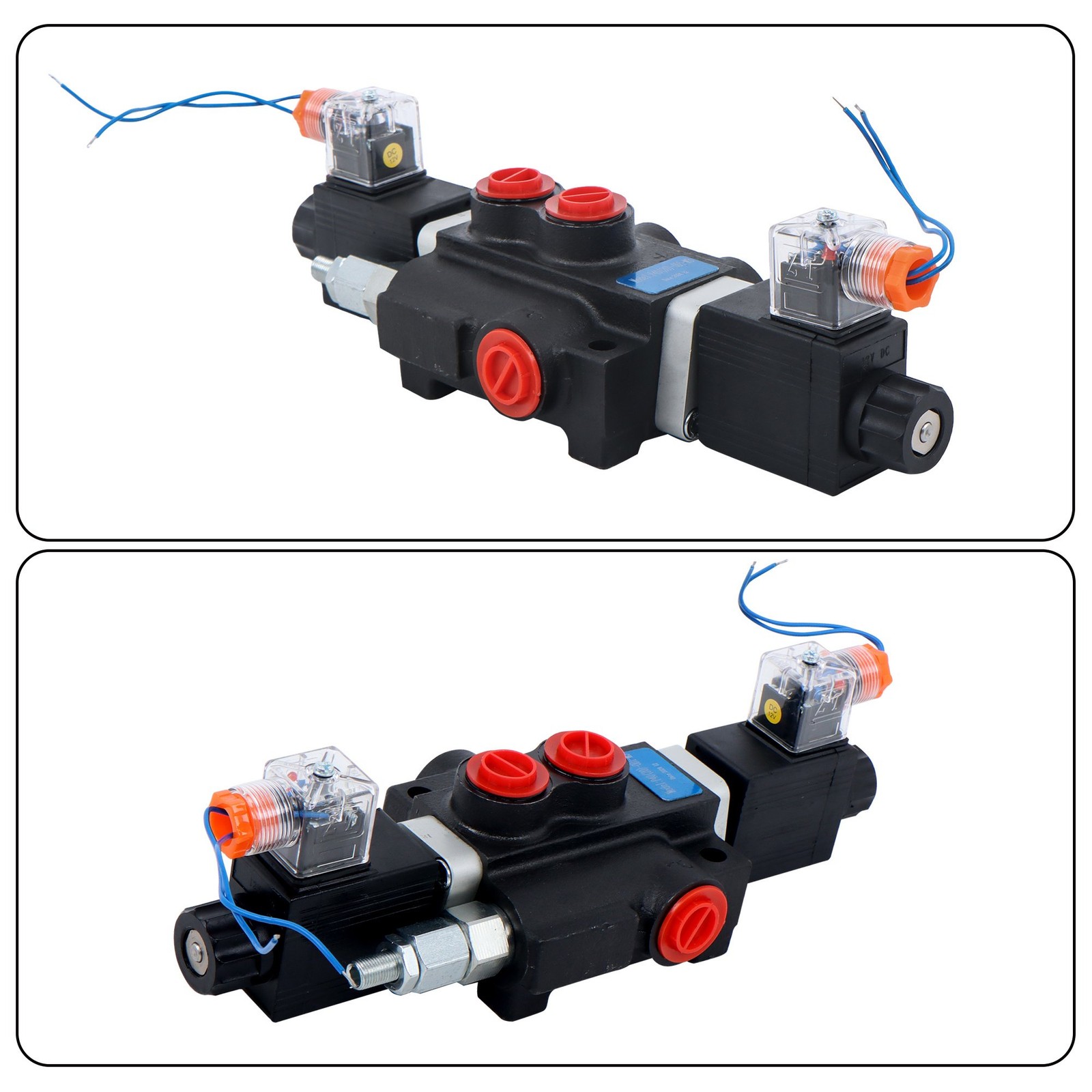

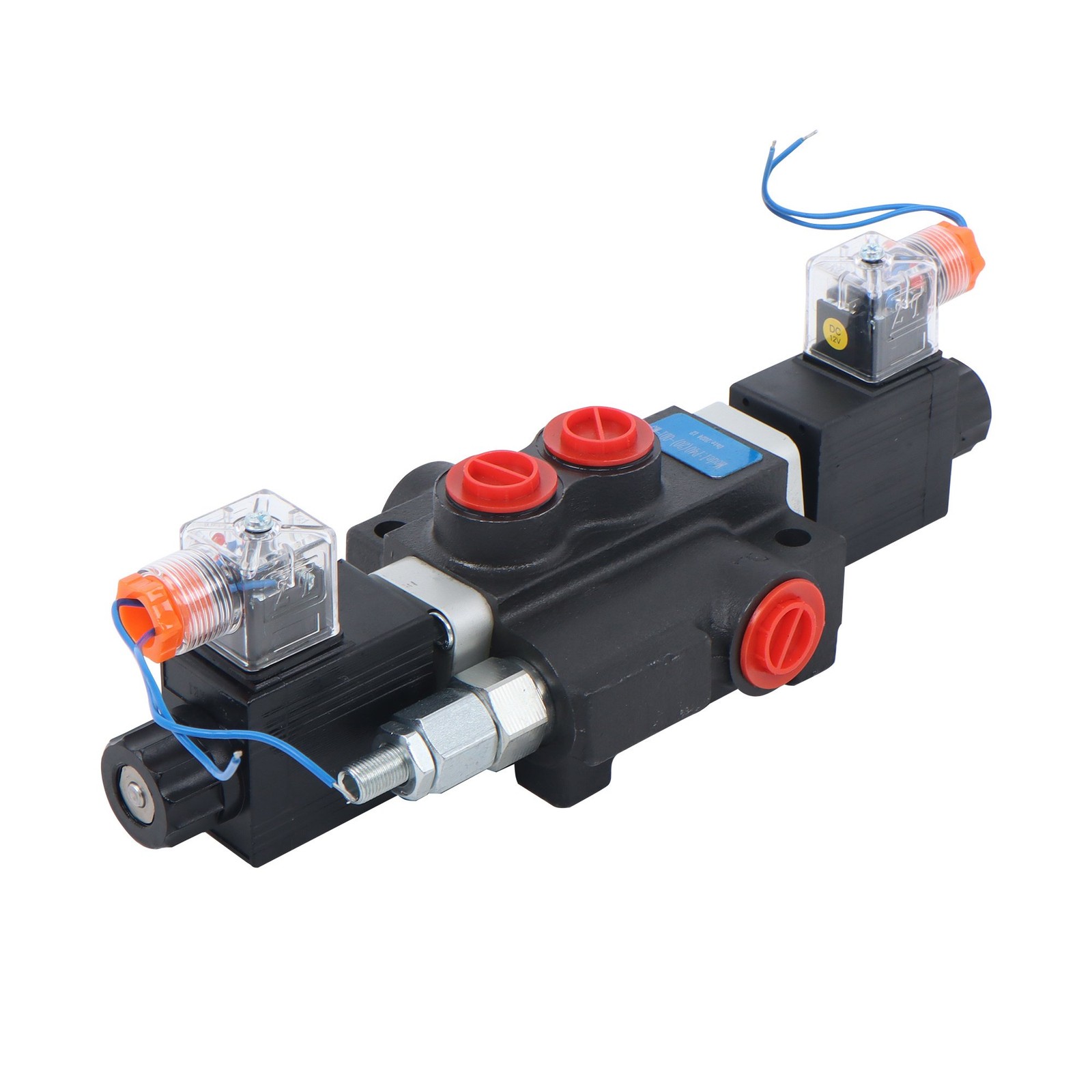

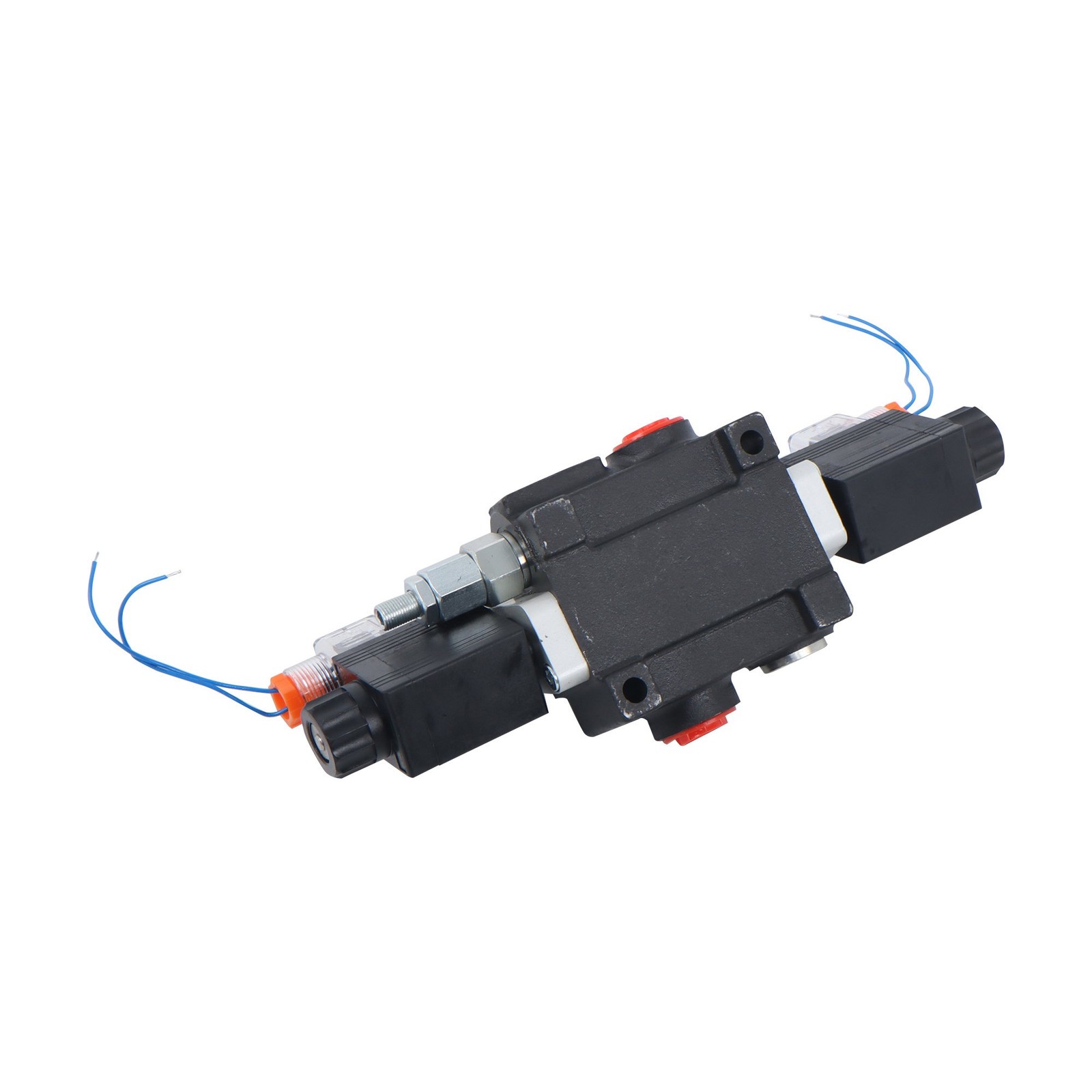

1 Spool 3600 PSI Solenoid Hydraulic Control Valve Double Acting 13 GPM 12V DC
USD 137.66 USD
Specifications
| Brand | waltvotur |
| MPN | WA3742200UR |
| Valve Operation | Solenoid |
| Maximum Flow Rate | 13 GPM |
| Supply Voltage | 12 V |
| Manufacturer Warranty | 1 Year |

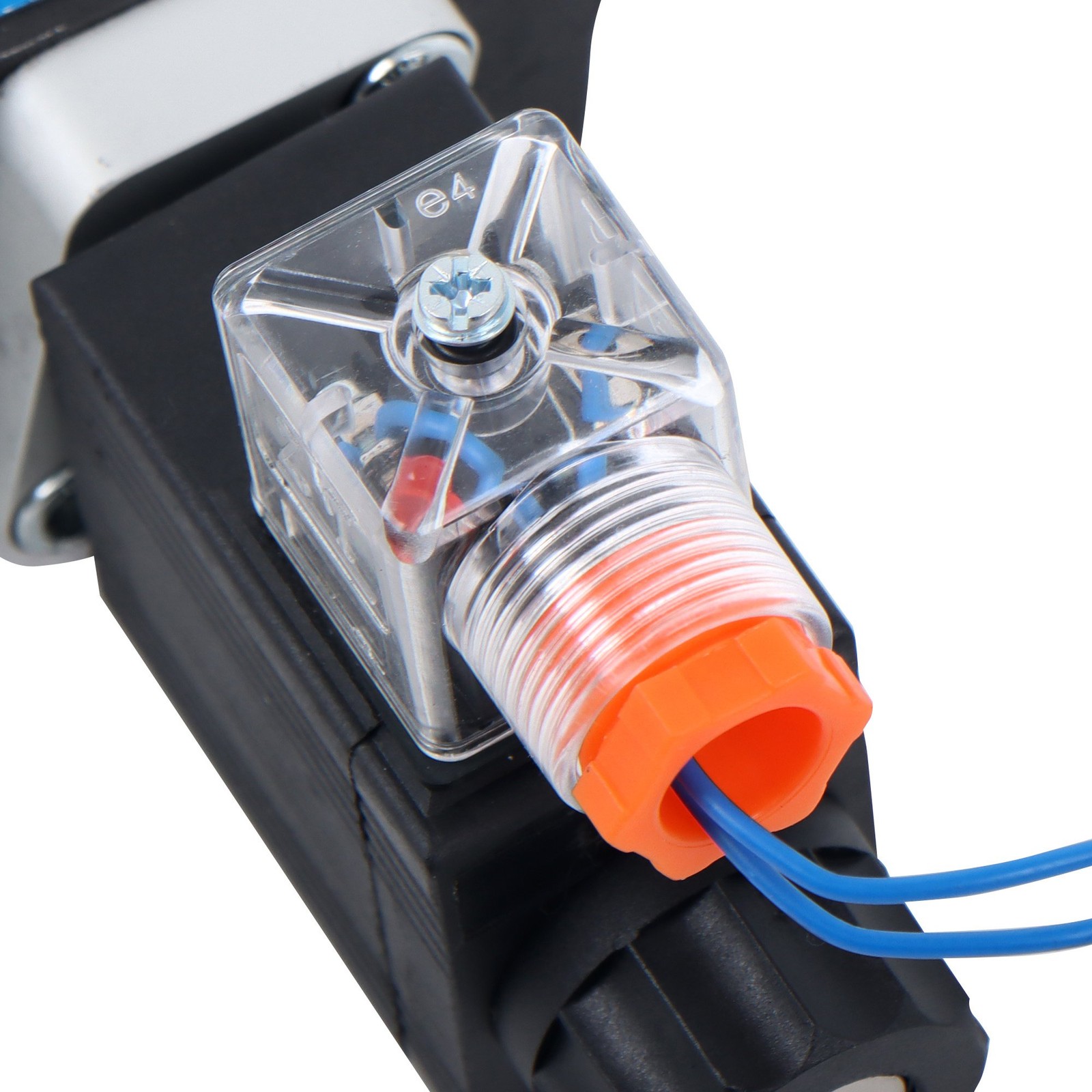

Specification： 12 Volt DC Solenoids DIN 43650 3 Prong Connectors Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI Preset Pressure Relief: 2610 PSI Flow Rating: 13 GPM (50 l/min) A & B Work Ports: #8 SAE O-Ring (3/4”-16) Thread Inlet Port: #10 SAE O-Ring (7/8”-14) Thread Outlet Port: #10 SAE O-Ring (7/8”-14) Thread N Port: #8 (1/2 – 14) G Thread (British Pipe Thread Parallel) Description： Precision ground and hard chrome-plated spools assure a long life High-tensile strength cast iron monoblock construction SAE O-Ring ports ensure solid seal and prevent blockages .
