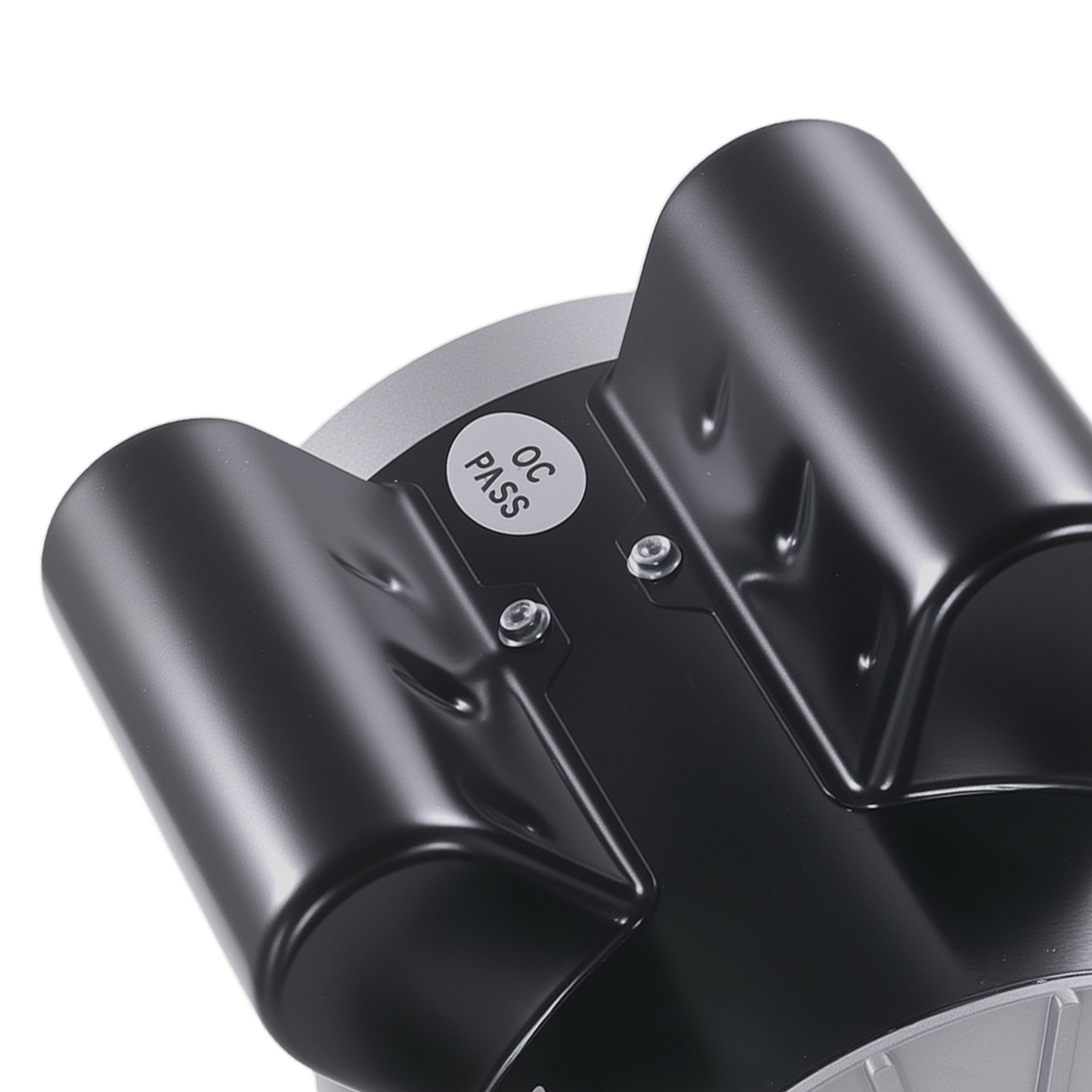

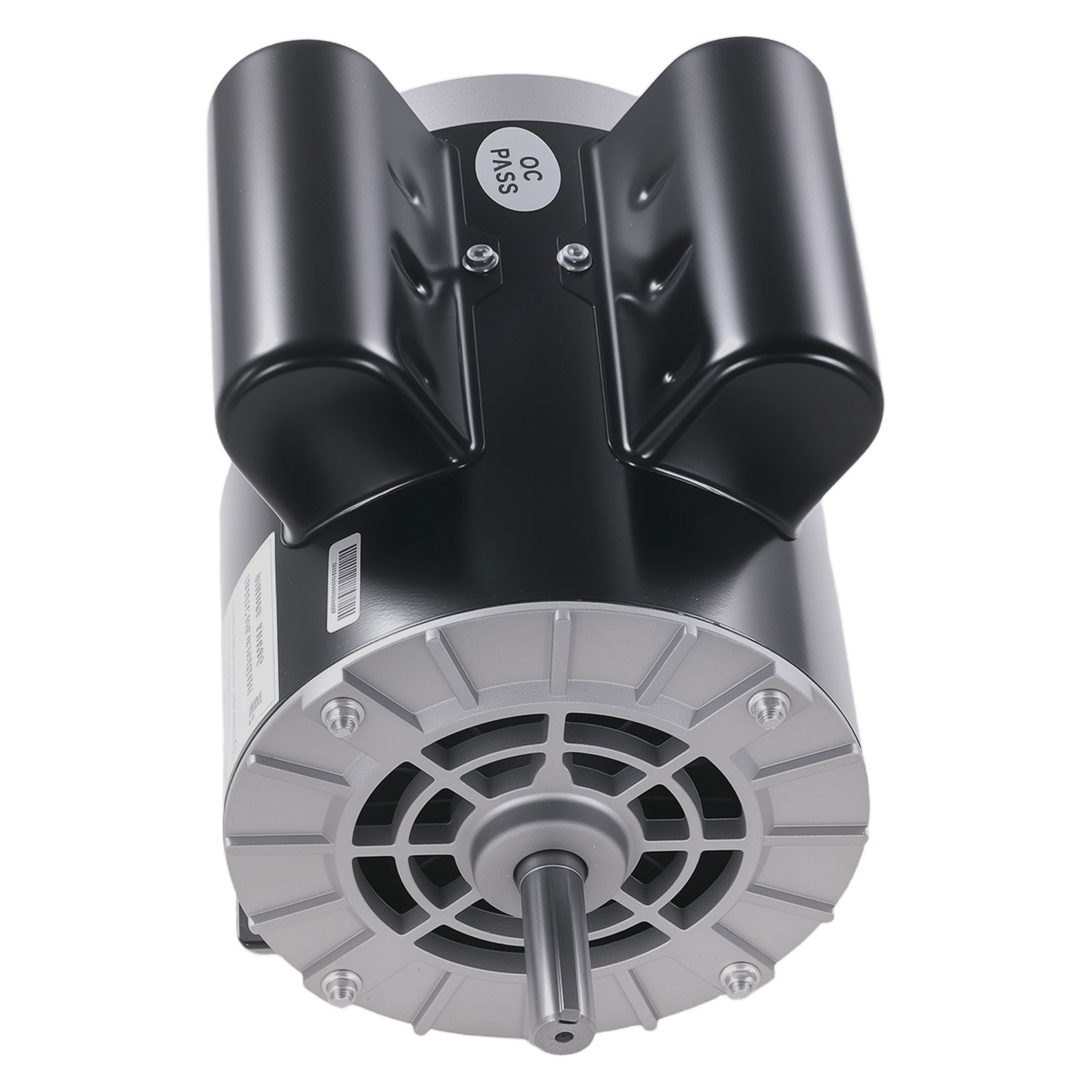

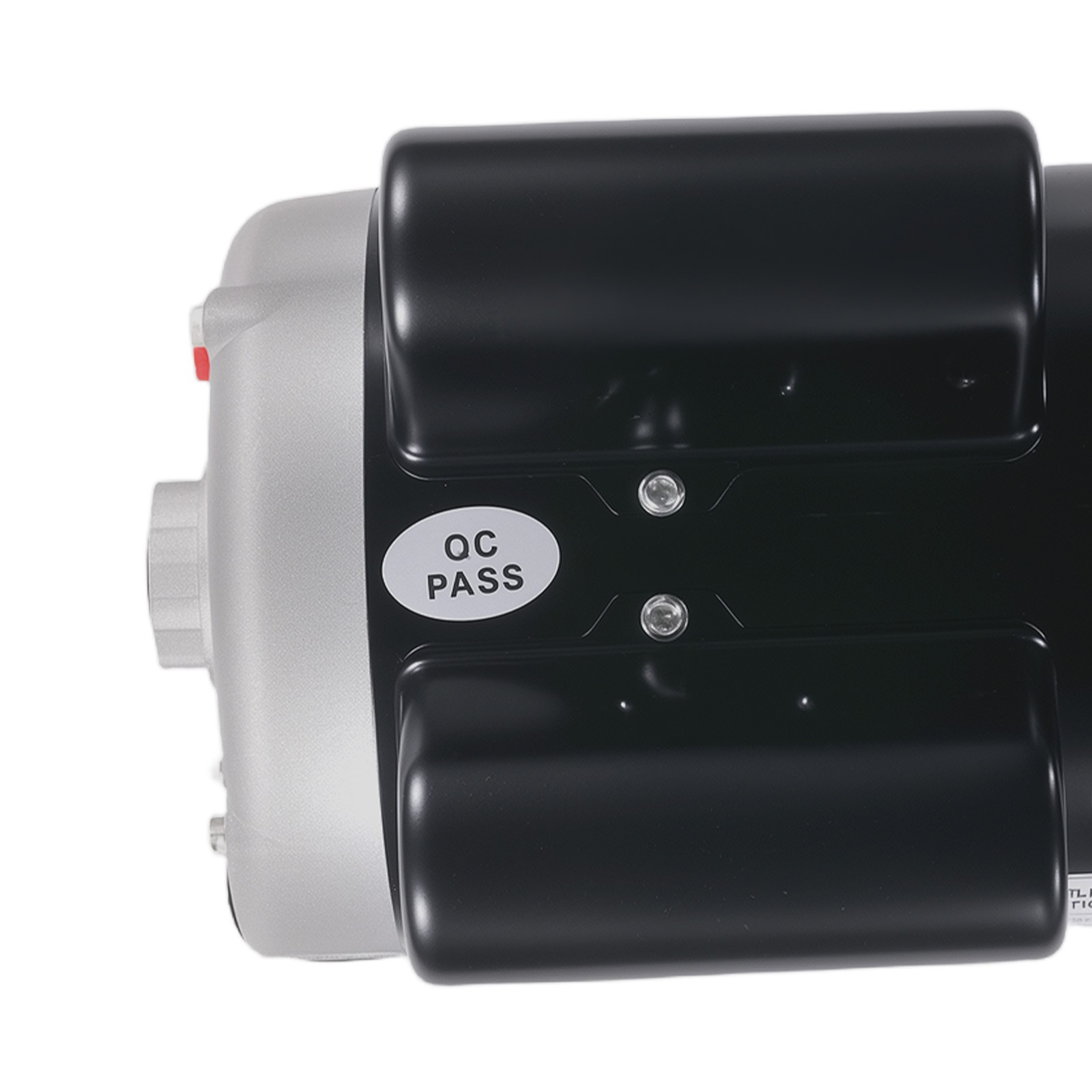

3HP SPL Compressor Motor 115/230V Single Phase 3450RPM 60Hz ODP Enclosure
USD 138.99 USD
Specifications
| AC Frequency Rating | 60 Hz |
| AC Motor Type | Induction/Asynchronous |
| AC Phase | Single Phase |
| Actual Rated Input Voltage | 115/230V |
| Base RPM | 3450 RPM |
| Brand | BFO |
| Country Of Origin | China |
| Enclosure Type | ODP (Open Drip-Proof) |
| Full Load Amps | 18/9A |
| IEC Frame Size | 56 Frame |
| Input: | 2.2.KW |
| Insulation Class | F (Max 311°F) |
| IP Rating | IP23 |
| Mounting Type | Base-Mounted |
| MPN | N5C784 |
| Nominal Rated Input Voltage | 115 V, 230 V |
| Pole： | 2 Pole |
| Protection Against Liquids | Splashing Water |
| Protection Against Solids | Dust Protected |
| Reversible/Non-Reversible | Non-Reversible |
| Rotation: | CCW |
| Service Factor | 1.00 |
| Shaft Diameter | 5/8 in |
| Shaft Type | Keyed |
| Unit Type | Unit |
Enclosure Type: ODP (Open Drip-Proof). Horsepower: 3 HP SPL. This model of ours is a 3hp SPL and cannot be directly used as a 3-horsepower motor. Phase: Single Phase. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications.
