4PCS KSD301 125C 257F NC Thermal Temperature Thermostat Switch Control

Specifications

Specification:Product NameTemperature SwitchModelKSD301Action TypeNC(Normal Close)Action Temperature125C/257FgeAC 250V 10ACircuit Resistance50 MohmInsulation Resistance100 MohmWithstand geAC1500V/ minuteSize3.4 x 3.2 x 1.2cm / 1.3" x 1.2" x 0.5(L*W*H)Mounting Hole Dia5 x 3.5mm(L*W) 1.5mmMounting Hole Center Distance23mm/0.9", 25mm/1"MaterialMetalWeight21gPackage4 x Temperature SwitchDescription:It is close until the surface reaches 125 Celsius degree and then the switch open. Automatically resetWhen the surface cools off about 5 degrees, the switch automatically close.Opening-closing durability: 10000 times or more (under rated load).General-purpose low cost, compact, large capacity, minute current thermostat.

Related Items

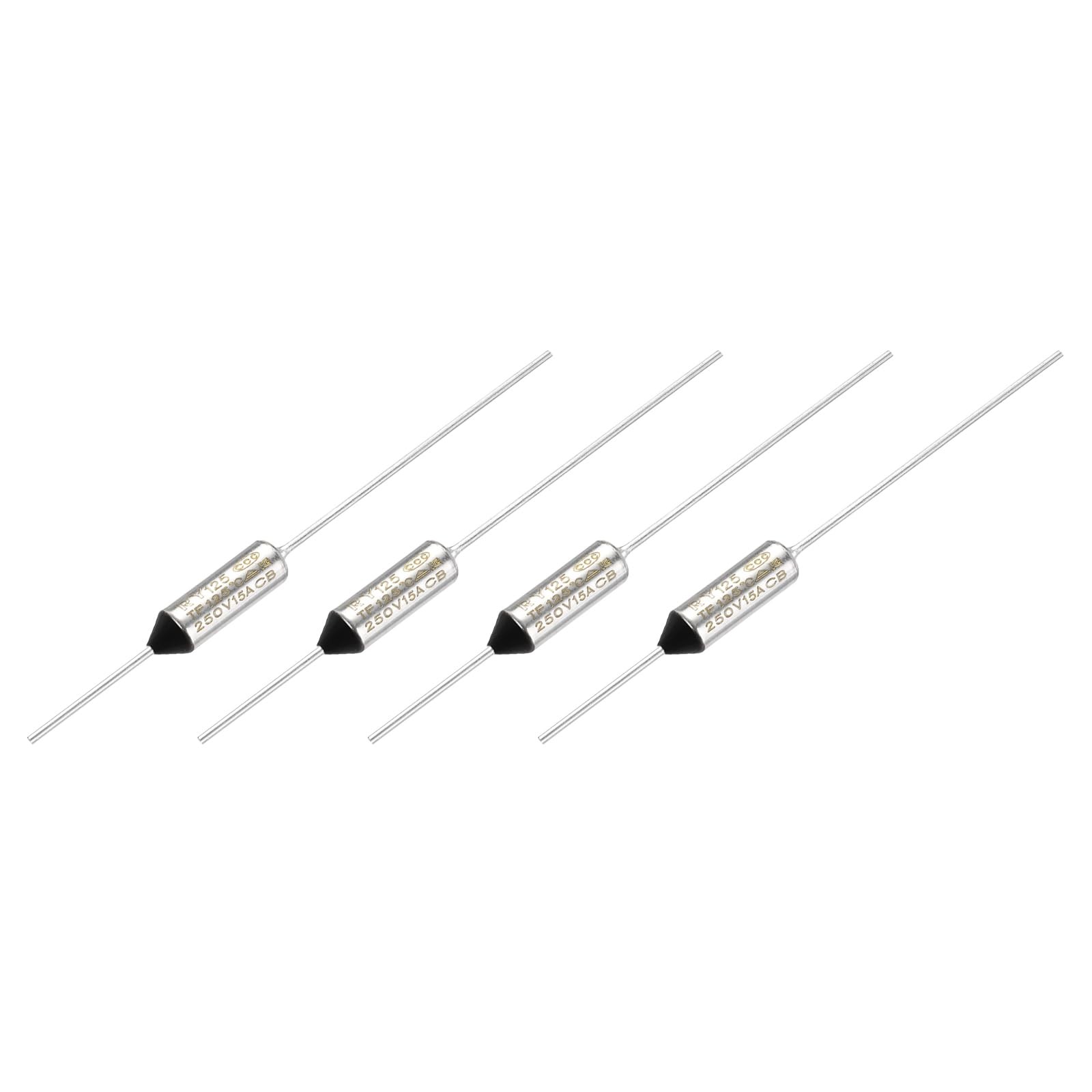

4 PCS Metal Temperature Thermal Fuse RY125 125C 257F 15A 250V Cutoff
