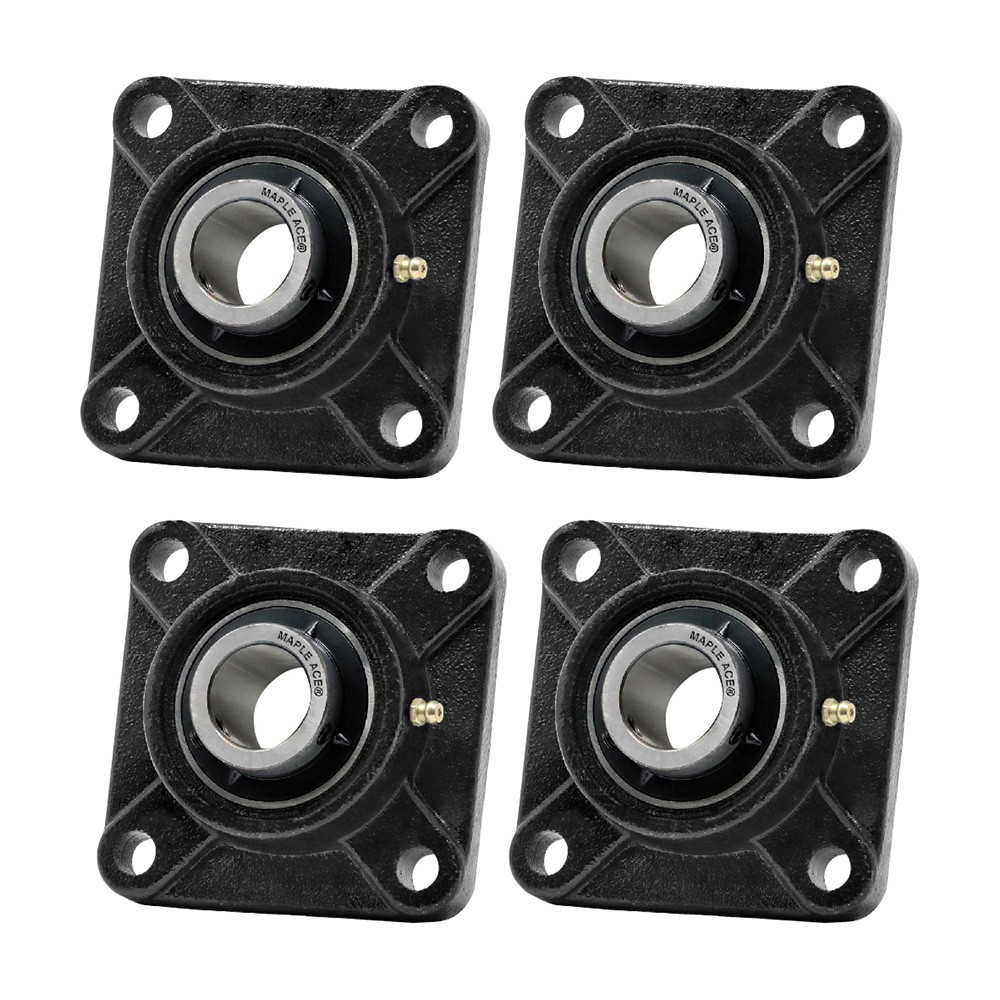

UCF209-28 Flange Bearing 1-3/4″ Bore, 4-Bolt Self-Aligning, Solid Base (Qty 4)
USD 55.95 USD
Specifications
| Brand | MAPLE ACE |
| MPN | UCF209-28 |
| Type | 4-Bolt Flange Bearing |
| Bore Diameter | 1.75 inches |
| Bearing Insert Type | 4-Bolt Flange Bearing |
| Material | Gcr15 |
| Model | UCF209-28 |
| Lubrication | Grease |
| Dynamic Load Rating Cr | 33200 N |
| Limiting Speed | 4300 r/min |
| Rolling Element Indicator | Ball |
| Static Load Rating Cor | 21600 N |
| Closures | Two Metal Shields (ZZ) |
| UPC | 841339028897 |

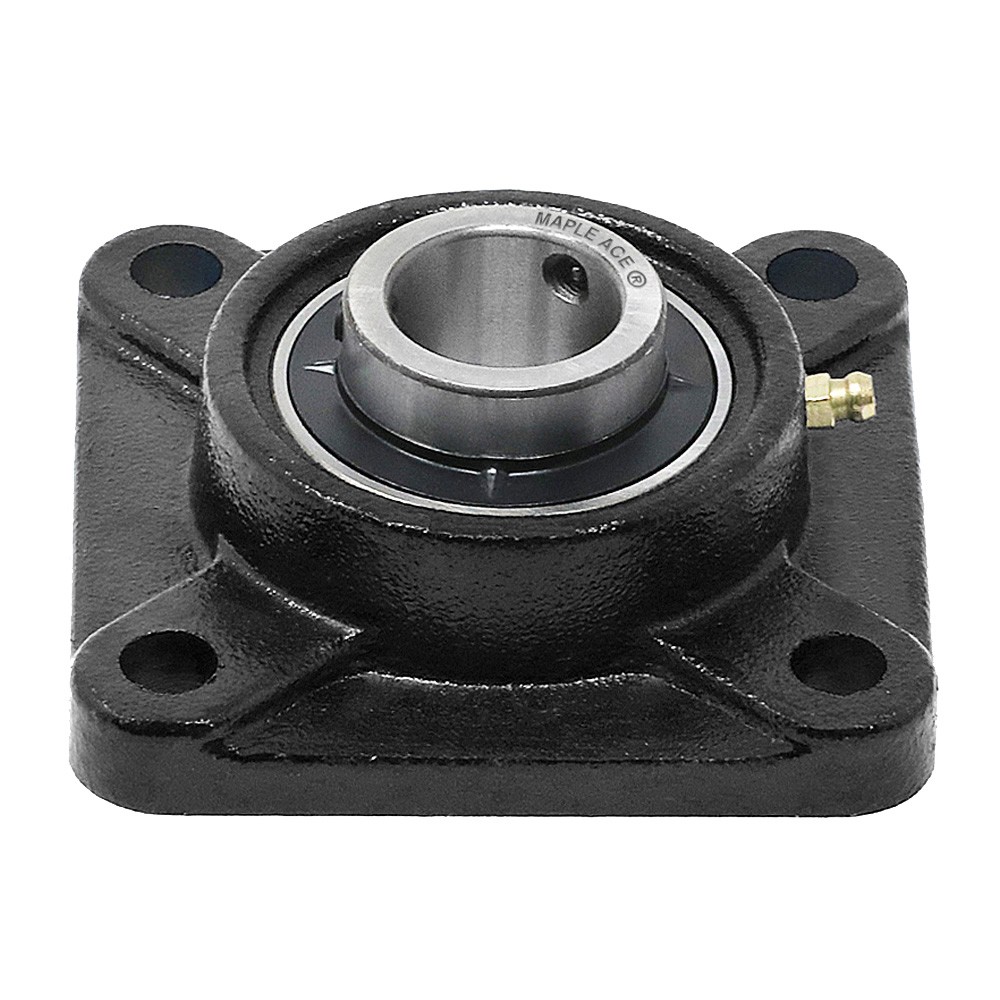

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Has a Set Screw Lock on its surface, for securing the shaft.
Related Items

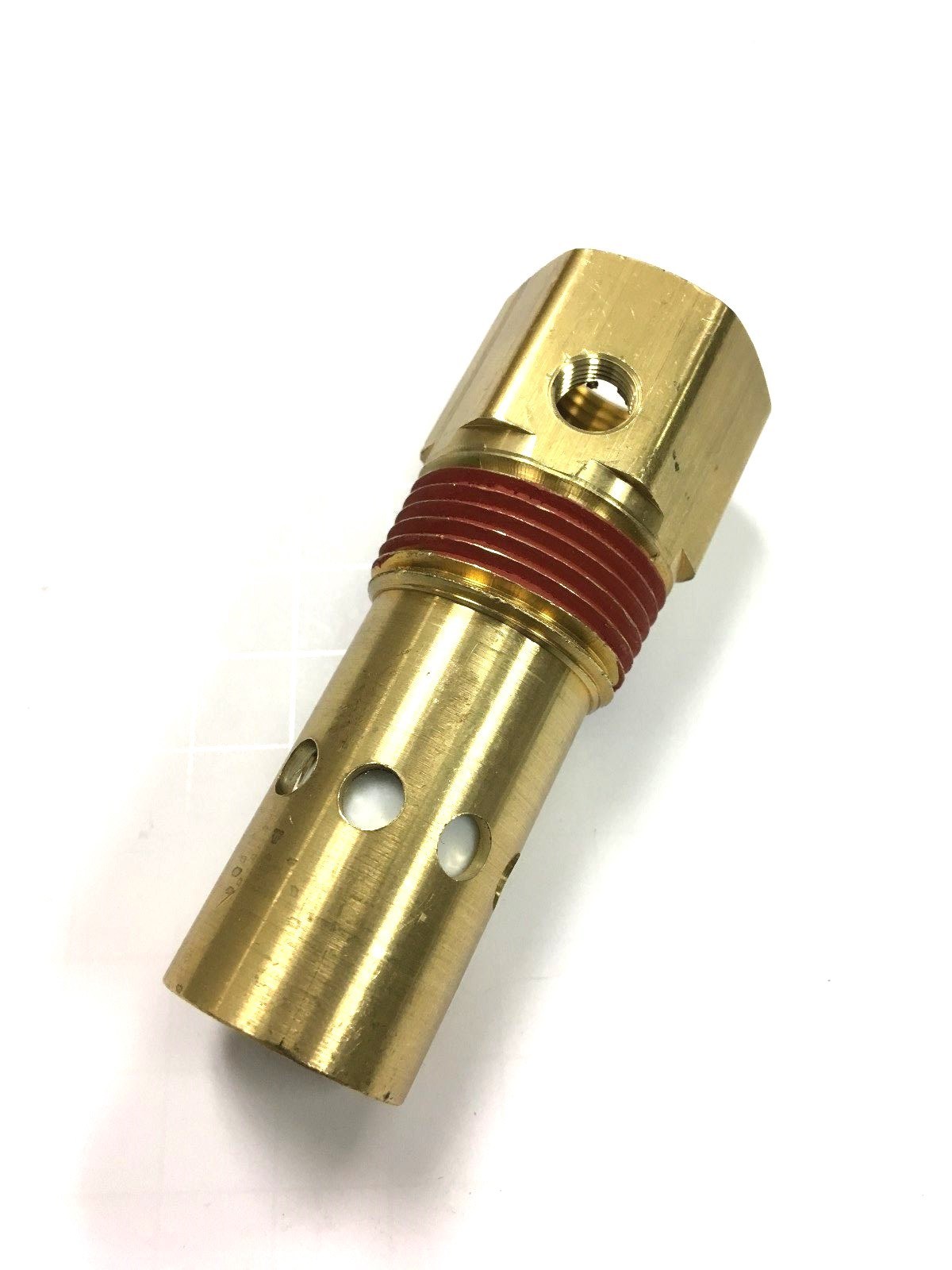

6X209 SPEEDAIRE IN TANK CHECK VALVE 3/4” FPT INLET X 3/4″ MPT OUT 3Z966 3Z967
A163 Fasco 1-Phase 3300RPM 115V 1-Speed OAO Draft Inducer Blower for Gas Furnace
Alliance, 209/00051/11, Drain Valve Motor for 3″ Drain, 220-240V/50-60Hz, Blade
UC209-45 premium Insert Bearing With Set Screw UC209-45 ,45MM Bore
Smith SC209 Cutting Torch Attachment Head Fit WH200 WH200A SW1 SW1A Miller New

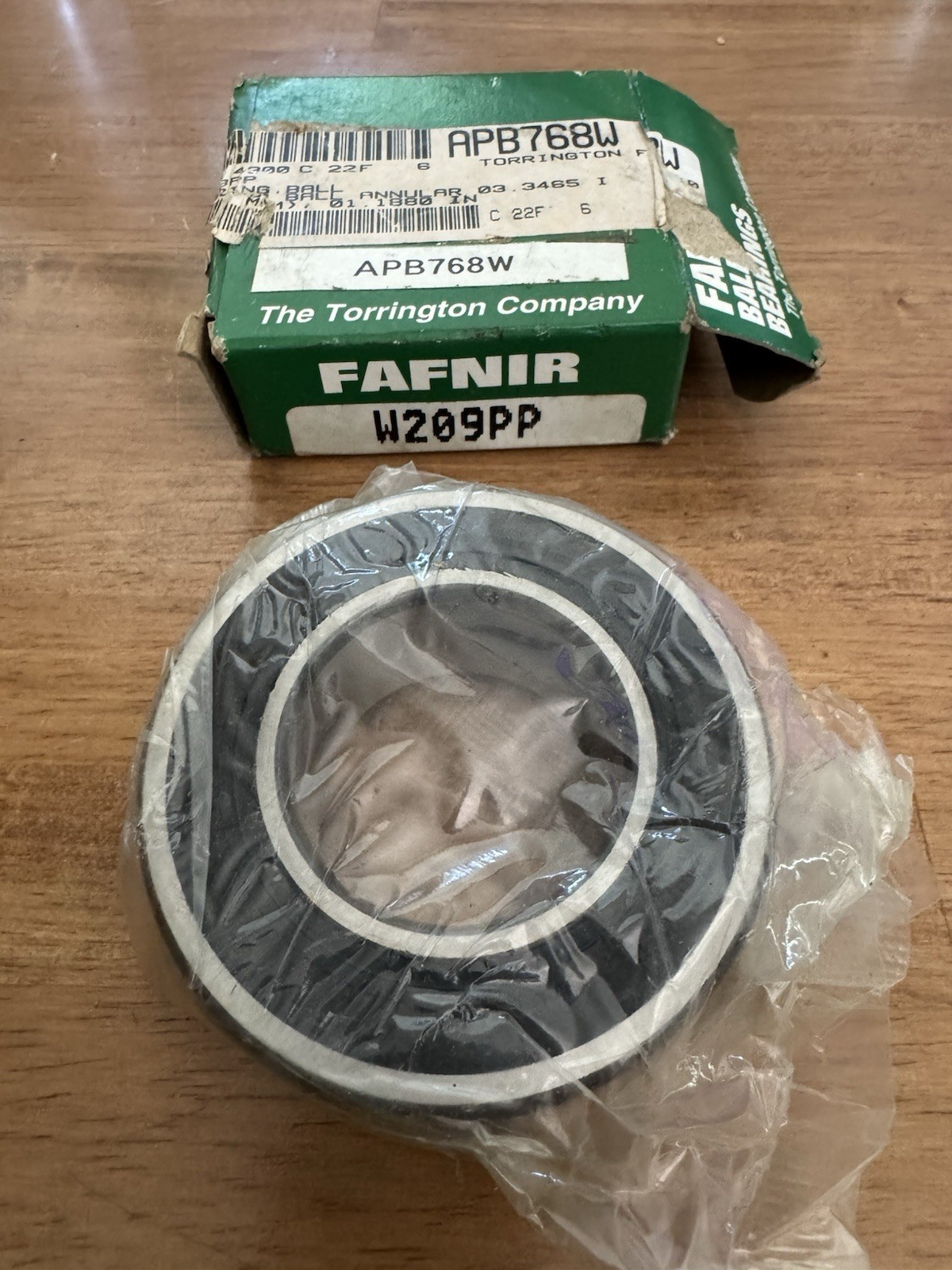

Fafnir W209PP Ball Bearing with Rubber Seals
